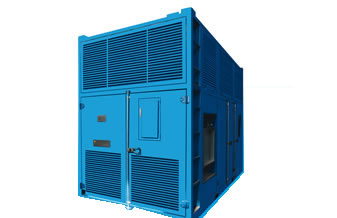

18000 fixed & combined dehumidifier

Description

Using a combination of frozen type moisture eliminator and cellular wheel type moisture eliminator,the fixed and combined dehumidifier is applied to special painting operations in fixed place throughout the year.In summer, it makes frozen type moisture eliminator as center, cellular wheel as assistant.In spring and autumn, it combines frozen type moisture eliminator and cellular wheel type moisture eliminator.In winter,it uses cellular wheel type moisture eliminator.

This type of dehumidifier's compressors of refrigeration system are BITZER screw compressors with four-stage load adjusting function, which will benefit energy saving and improving the operation stability.

According to the inlet air conditions and supply air requirements,the equipment can select automatically different operating modes with the PLC program.The operating modes include refrigeration operation, refrigeration combined with wheel operation, the wheel operation,and refrigeration and wheel combined with heating operation.These operating modes can meet the requirments of all operating condition.

Laboratory Specifications

Product parameters sheet:

Model Parameters		TZH-G-F-18RD	TZH-G-F-18DR	TZH-G-F-18RR		TZH-G-F-18RRR
Energy efficiency rating		A	B	C		D
Processed airflow rate m3/h		18000
excess pressure of air-outlet Pa		≥1500
Power of main fan kW		22 or 18.5
Refrigerating capacity kW		≥370
Compressor（HP）		90－110	125	90－110		90－110
Wheel size		1220*200
Regeneration air flow rate m³/h		4000
post heating mode		subcooler	electric heating	subcooler		subcooler
heating mode in winter		electric heating				Heat pump of main system
electric heating power kw		100	100	100		0
wheel regeneration model		electric heating	heat pump	heat pump		heat pump
power of regeneration system kW		72	10	10		10
Inlet air condition		-10~45℃/ RH60%~95%
outlet air conditions		In spring and Autumn: temperature≤25℃±3℃ RH≤45%；Summer: temperature≤25℃±3 ℃ RH≤45%；In winter: temperature≥25℃±3℃ RH≤45%；
air outlet		Fixed： 600mm in diameter, with a switch valve and connectors. (it can be customized according to user’s requirements)
electric cabinet		PLC control. Electric leakage protection + phase fault protection + over and under voltage protection, overload protection and electrical shunt protection, and is provided with a self-diagnostics system. Dust proof and moisture proof.
control and display of temperature and humidity		4 stage automatic unloading refrigeration + control of wheel regeneration temperature + cooler (or post heating) + winter heating. With outlet and inlet temperature and humidity display, refrigeration temperature display.
Fault display		System power failure / error phase / high and lower voltage failure / overload display
Pressure display and protection		Refrigerant high and low pressure display and protection. Voltage over-voltage and under-voltage protection.
electric current display		Each group of motors and electric heating current display.
Air inlet filter		Stainless steel frame, aluminum alloy material multi-layer structure of filtering net, accuracy is sub-middle effect, removable, 10 thousand times cleaning.
Communication model(optional)		Wired (or wireless) remote monitoring and messages warning
The maximum operating power kW		155	234	155	110
Installed power kW		370	300	240	150
Chassis structure		The unitary frame structure. Equipped with hanging holes, the main structure of the strength and stiffness can meet the requirement of hoisting.
equipment weight kg	Integral type	6500
	outdoor unit of split type	2000
	Indoor unit of split type	5000
overall dimension	Integral type	500024003200
	outdoor unit of split type	420022001800
	Indoor unit of split type	460024002400

The energy consumption comparison of various forms of dehumidifier

	TZH-G-F-18DD	TZH-G-F-18RD	TZH-G-F-18DR	TZH-G-F-18RR	TZH-G-F-18RRR
Energy efficiency rating	Traditional model	A	B	C	D
Installed power kW	370	370	300	240	150
The maximum operating power kW	234	155	234	155	110
Power distribution capacity kw	280	280	280	180	150
Annual average operating power kW	136.7	97	92	67.5	54.7
Annual power consumption kwH	467870	327509	313473	240870	185970
Energy consumption ratio	100%	70%	67%	49.4%	40%

Remarks:

1.The above data were gave according to the actual operation 332 days in 2012

2.Energy consumption data were measured in Shanghai area

3.It can be customized according to customer’s requirements. Specific configuration will be subject to technical specification.
