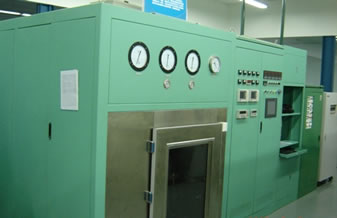

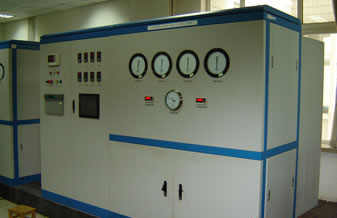

Test bench of compressor performance (the second refrigerant calorimeter method)
Description
This test bench uses the second refrigerant calorimeter method to test compressor cooling capacity, input power and coefficient of performance ,etc. It is applicable to not only common refrigerants（R134a、R290、R22、407C、410A）, but also new refrigerants (CO2，R404A) through customization.Its test condition can be adjusted according to different test standards, and it is kind of reliable calibration equipment. The test bench meets the requirements of standards GB/T5773 -2004 and ASHRAE23-78.
1. cooling capacity, COP, input power and current for compressor with fixed frequency
2. cooling capacity, COP, the first (second) side input power and current for compressor with inverter frequency
3. compressor winding (optional)
4.compressor rotation speed (optional)
5.oil circulating rate (optional)
6. compressor harmonic (optional)
1. refrigerant: R134a、R22、R407C、R410A and R404A
2. The range and accuracy of working conditions:
|
No. |
Control parameter |
unit |
Control range（in the case of Air conditioning compressor) |
Control precision |
|
1 |
Suction pressure |
MPa |
0．2---1.5 |
±0.003 |
|
2 |
Suction temperature |
℃ |
0---40 |
±0.2 |
|
3 |
discharge pressure |
MPa |
1.2---4.5 |
±0.01 |
|
4 |
Temperature before expansion valve |
℃ |
20---60 |
±0.2 |
|
5 |
Compressor room temperature |
℃ |
20---50 |
±0.5 |
3.Deviation between main side and secondary side: ≤±2% (When oil circulating rate≤0.5%)
4. Repeatability: ≤±1% (installation one time, independent test results of five times)
5 . Accuracy: ≤± 2％ (compared with the test results of standard sample)
6 . time: ≤ 30min (from starting to stable working operation)
7. Repeatability precision: ±1%
8 . Accuracy precision: ±2%
9 . Location number: 1 ~ 4
10. Control mode: Manual control or automatic control.
The following specifications are only for reference, it can be customized according to customer’s requirements:
1-5 HP Test bench of compressor performance
2-8HP Test bench of compressor performance,etc.
