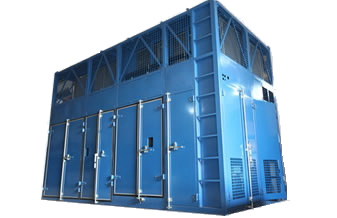

Dehumidifier with fresh air
Description
It can be used for LNG liquid tank during it is built, and also for product buildings, warehouses and other large spaces that require dehumidification and cooling. Dehumidifier is installed outdoor, and be connected to indoor through the air ducts. With the function of adjusting fresh air flow rate, at the same time it also can filter chemical substances in air (specific chemical substances to be given), and remove corrosive or harmful chemical ions in indoor air and fresh air to meet the requirements of food, chemical and other special processes.
|
Model Parameters |
TXH-G-F-25RR |
TXH-G-F-50RR |
TXH-G-F-70RR |
|
|
Circulating air flow rate m3/h |
25000 |
50000 |
70000 |
|
|
Circulating fan power kW
|
15/4 two speeds
|
18.5/6.5 two speeds |
24/8.5 two speeds
|
|
|
Dehumidification cooling capacity kW |
|
|
|
|
|
Compressor（HP） |
70 |
2*70 |
2*90 |
|
|
Regeneration air flow rate m3/h |
4000 |
6000 |
||
|
heating mode in winter |
heat pump |
|||
|
wheel regeneration model |
heat pum |
|||
|
power of regeneration system kW |
10 |
15 |
||
|
Outdoor air condition |
-10~45℃/ RH60%~95% |
|||
|
Indoor(cabin) air conditions |
In winter: temperature≥20℃ RH≤60%；In spring and Autumn: temperature≤25℃ RH≤60%；in summer: temperature≤30 ℃ RH≤60% |
|||
|
Air inlet
|
Connection flange: 1000*1000mm (it can be customized according to user’s requirements) |
Connection flange: 1000*1000mm (it can be customized according to user’s requirements) |
Connection flange: 1200*1200mm (it can be customized according to user’s requirements) |
|
|
electric cabinet |
PLC control. Electric leakage protection + phase fault protection + over and under voltage protection, overload protection and electrical shunt protection, and is provided with a self-diagnostics system. Dust proof and moisture proof. |
|||
|
Temperature and humidity control and display |
4 stage automatic unloading refrigeration + control of wheel regeneration temperature + winter heating. With outlet and inlet temperature and humidity display, indoor multipoint temperature and humidity display, refrigeration temperature display. |
|||
|
Fault display |
System power failure / error phase / high and lower voltage failure / overload display |
|||
|
Pressure display and protection |
Refrigerant high and low pressure display and protection. Voltage over-voltage and under-voltage protection. |
|||
|
Communication model(optional) |
Wired (or wireless) remote monitoring and messages warning |
|||
|
The maximum operating power kW |
|
|
|
|
|
Installed power kW |
|
|
|
|
|
Chassis structure |
The unitary frame structure. Equipped with hanging holes, the main structure of the strength and stiffness can meet the requirement of hoisting. |
|||
|
overall dimension(L*W*Hmm) |
5000×2300×3200 |
6000×2900×3700 |
6000×2900×3900 |
|
|
equipment weight kg |
5600 |
10000 |
11000 |
|
