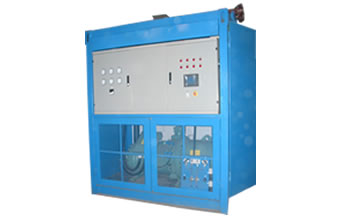

36000 fixed & combined dehumidifier

Description

Using a combination of frozen type moisture eliminator and cellular wheel type moisture eliminator,the fixed and combined dehumidifier is applied to special painting operations in fixed place throughout the year.In summer, it makes frozen type moisture eliminator as center, cellular wheel as assistant.In spring and autumn, it combines frozen type moisture eliminator and cellular wheel type moisture eliminator.In winter,it uses cellular wheel type moisture eliminator.

This type of dehumidifier's compressors of refrigeration system are BITZER screw compressors with four-stage load adjusting function, which will benefit energy saving and improving the operation stability.

According to the inlet air conditions and supply air requirements,the equipment can select automatically different operating modes with the PLC program.The operating modes include refrigeration operation, refrigeration combined with wheel operation, the wheel operation,and refrigeration and wheel combined with heating operation.These operating modes can meet the requirments of all operating condition.

Laboratory Specifications

Product parameters sheet:

Model Parameters		TZH-G-F-36RD	TZH-G-F-36DR	TZH-G-F-36RR		TZH-G-F-36RRR
Energy efficiency rating		A	B	C		D
Processed airflow rate m3/h		36000
excess pressure of air-outlet Pa		≥1500
Power of main fan kW		37
Refrigerating capacity kW		≥700
Compressor（HP）		2*90	2*125	2*90		2*90
Wheel size		1520*200
Regeneration air flow rate m³/h		6000
post heating mode		subcooler	electric heating	subcooler		subcooler
heating mode in winter		electric heating				Heat pump of main system
electric heating power kw		210	210	210		0
wheel regeneration model		electric heating	heat pump	heat pump		heat pump
power of regeneration system kW		108	15	15		15
Inlet air condition		-10~45℃/ RH60%~95%
outlet air conditions		In spring and Autumn: temperature≤25℃±3℃ RH≤45%；in summer: temperature≤25℃±3 ℃ RH≤45%；In winter: temperature≥25℃±3℃ RH≤45%；
air outlet		Fixed：900mm in diameter，with a switch valve and connector. (it can be customized according to user’s requirements)
electric cabinet		PLC control. Electric leakage protection + phase fault protection + over and under voltage protection, overload protection and electrical shunt protection, and is provided with a self-diagnostics system. Dust proof and moisture proof.
control and display of temperature and humidity		2*4 stage automatic unloading refrigeration + control of wheel regeneration temperature + cooler (or post heating) + winter heating. With outlet and inlet temperature and humidity display, refrigeration temperature display.
Fault display		System power failure / error phase / high and lower voltage failure / overload display
Pressure display and protection		Refrigerant high and low pressure display and protection. Voltage over-voltage and under-voltage protection.
electric current display		Each group of motors and electric heating current display.
Air inlet filter		Stainless steel frame, aluminum alloy material multi-layer structure of filtering net, accuracy is sub-middle effect, removable, 10 thousand times cleaning.
Communication model(optional)		Wired (or wireless) remote monitoring and messages warning
maximum operating power kW		385	445	315	224
Installed power kW		485	452	426	265
Chassis structure		The unitary frame structure. Equipped with hanging holes, the main structure of the strength and stiffness can meet the requirement of hoisting.
equipment weight kg	Integral type	9500
	outdoor unit of split type	3000
	Indoor unit of split type	6800
overall dimension	Integral type	550026003300
	outdoor unit of split type	520024001800
	Indoor unit of split type	550026002500

The energy consumption comparison of various forms of dehumidifier

	TZH-G-F-36DD	TZH-G-F-36RD	TZH-G-F-36DR	TZH-G-F-36RR	TZH-G-F-36RRR
Energy efficiency rating	Traditional model	A	B	C	D
Installed power kW	545	485	452	426	335
The maximum operating power kW	445	385	445	315	224
Power distribution capacity kW	445	385	445	315	265
Annual average operating power kW	220	150	165	124	108
Annual power consumption k WH	742380	506168	556785	418720	364509
Energy consumption ratio	100%	68%	75%	56.4%	49.1%

Remarks:

1.The above data were gave according to the actual operation 332 days in 2012

2.Energy consumption data were measured in Shanghai area

3.It can be customized according to customer’s requirements. Specific configuration will be subject to technical specification.
